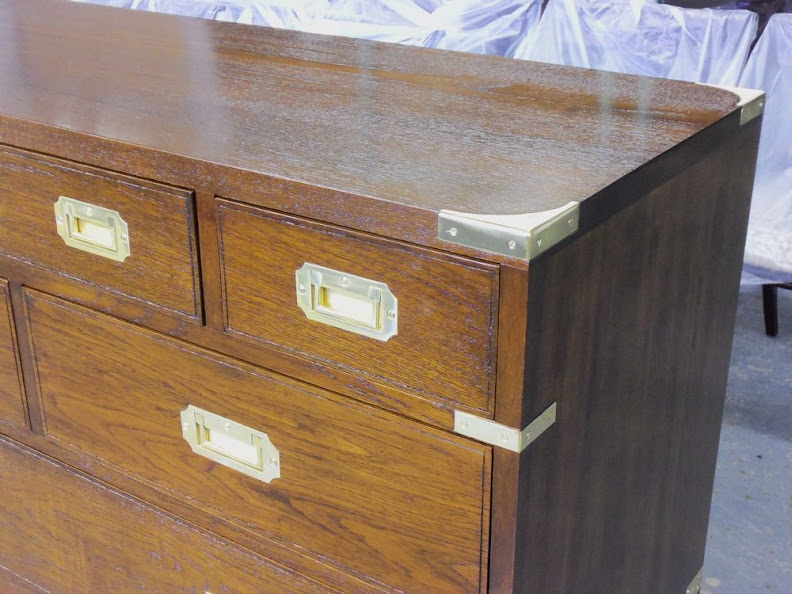

Installing Campaign chest hardware - part 6: Setting in the round corners,

RATE THIS:

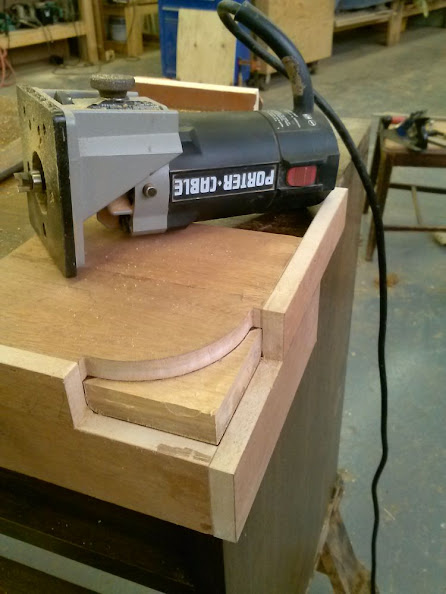

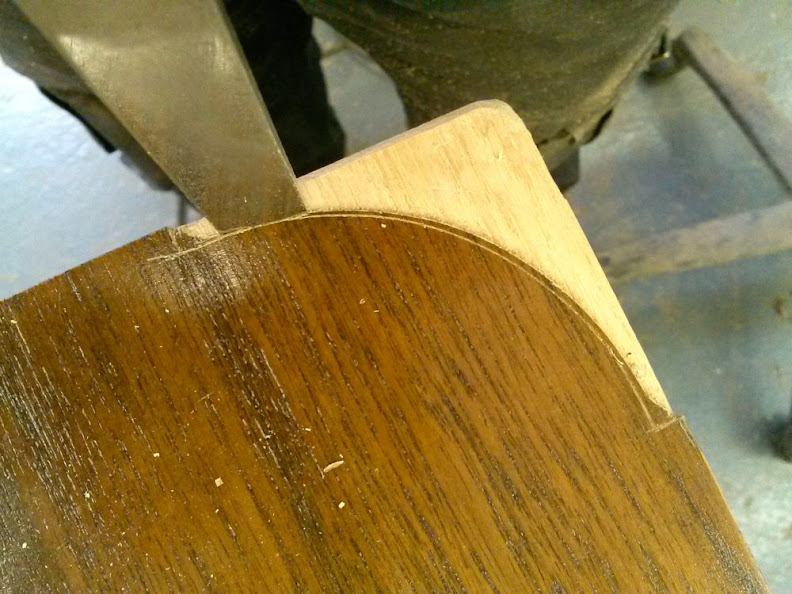

I made the template from 1/2 MDF. I constructed the template’s reduce along the contour of smallest corner from the eight that we bought. This way I ensured that after routing the recesses I would only need to do minor chiseling to enlarge them so they could fit the specific corner. If I used a bigger corner as my guide for the template, I would have surely ended up with gaps between the smaller corners and the generic recess that I routed for it. As I tell my students: we don’t have an “Undo” option in woodworking; it is better to under cut and adjust later than to over cut and end up adding patches of wood that would not look natural. The next group of pictures explains the routing process and the cleaning up procedure that followed.
